- Lamp efficacy
Lamp efficacy
High efficacy LED light sources convert energy more efficiently into light, reducing energy consumption.
- Ballast classification
Ballast classification
Controlling the electricity supply to the lamp (Energy Efficiency Index).
- Luminaire distribution
Luminaire distribution
Controlling light emission using optics which bend and shape the light to the correct location.
- System efficacy
System efficacy
The use of high efficacy LED light sources combined with precision optics and excellent thermal control results in a high system efficacy, producing maximum light output for minimum energy input.
- Presence/absence detection
Presence/absence detection
Integral presence sensors within HiPak Pro LED ensure lighting is only on when required, helping to reduce waste energy.
- Daylight detection
Daylight detection
Reducing waste light during daylight hours.
- Constant illuminance
Constant illuminance
Producing the correct lighting levels for the duration of the maintenance period.
- Task-scene setting
Task-scene setting
Allowing the user to set scenes and adapt the lighting to different tasks.
- Timed off
Timed off
Automatic cut-off to turn all lights off during unoccupied hours.
- Task lighting
Task lighting
Lighting task areas with the correct amount of light.
- Zoning of lighting
Zoning of lighting
Zoning lighting in accordance to occupancy patterns or window location.
- Maintenance schedule
Maintenance schedule
Tailoring maintenance schedules in accordance to product age, performance and environment.
- Waste light
Waste light
Eliminating waste light which does not hit the intended target.
- Reflectance
Reflectance
Taking advantage of light which is reflected from the surface within the space.
- Visible smart metering
Visible smart metering
Enabling results of actions to be quickly seen as increased or decreased energy use to encourage responsible energy consumption.
Summary

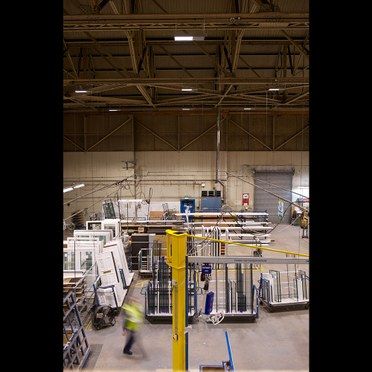

After trialling fittings from several manufacturers, facilities management company Cofely chose Thorn's HiPak Pro LED high bay luminaire to refurbish the lighting at Anglian Home Improvement's Norwich factory. Benefits include a 63% energy reduction and an increase in light levels from 100 to 300 lux.
Background
Anglian Home Improvements was established in 1966 and is renowned in the UK as the number one supplier of high quality home improvements. Saving energy for their customers is at the forefront of what they do, so the company decided to explore how its own manufacturing site in Norwich could save energy with new energy efficient lighting.
Lighting objectives
The factory was previously lit using products employing a mixture of 700W Mercury MBFU lamps, 400W SON-T high bays and 100W Fluorescent fittings. The objectives were therefore twofold: to reduce energy consumption and improve the working environment by improving the quality of light.
Lighting solution
Thorn's Key Account Manager, Terry Ganslandt, worked closely with facilities management company Cofely to provide various product samples for trial, expert lighting designs and several supportive site visits. As a new customer to Thorn, Cofelys Regional Account Manager, Jason Rose had trialled fittings from four other manufacturers without success. Jason explains, "It was Thorn's HiPak Pro LED which was the best for our application and the reason why we chose to work with Thorn for the
first time. HiPak Pro LED gives a great lighting spread and doesn't glare when you look at or around the light." HiPak Pro LED is a robust, low maintenance and energy saving LED high bay luminaire. At just 150W, it is substantially more energy efficient than
the original 700W mercury lamps and has dedicated individual LED optics for precise light control. It also has an integrated PIR sensor and is DALI dimmable for maximum energy savings.
Results and benefits
HiPak Pro has reduced energy consumption by 63% (from 19kWh to 7kWh) while increasing light levels from 100 to 300 lux. Jason explains: "Due to the PIR option, we were able to program HiPak Pro LED to our requirements, which was a big plus."
"The fitting was also very easy to install. Everyone in the factory is really happy with the solution. The lighting has a very good even spread, provides a nice light to work under and saves a lot of energy too." Duncan Mottershead, Engineering Director at
Anglian Home Improvements says: "An integral part of Anglian Home Improvements' energy and environmental policies is a commitment to use energy wisely and responsibly, and actively pursue ways to reduce energy usage." "Installation of the new Thorn HiPak Pro LED lighting is part of this commitment and has resulted in energy savings of around 60% versus
the previous lighting solution it replaced, as well as providing a much brighter and better overall environment within the factory."
Key facts
• 63% energy savings
• Lux levels increased from 100 to 300
