Thorn makes a splash at the Liverpool Aquatics Centre
- Lamp efficacy
Lamp efficacy
Ensuring the lamp efficiently converts electricity into light (lm/W).
- Ballast classification
Ballast classification
Controlling the electricity supply to the lamp (Energy Efficiency Index).
- Luminaire distribution
Luminaire distribution
Controlling light emission using optics which bend and shape the light to the correct location.
- System efficacy
System efficacy
Combining optical and thermal control within the luminaire (luminaire lm/W).
- Presence/absence detection
Presence/absence detection
Providing lighting only when it’s needed.
- Daylight detection
Daylight detection
Reducing waste light during daylight hours.
- Constant illuminance
Constant illuminance
Producing the correct lighting levels for the duration of the maintenance period.
- Task-scene setting
Task-scene setting
Allowing the user to set scenes and adapt the lighting to different tasks.
- Timed off
Timed off
Automatic cut-off to turn all lights off during unoccupied hours.
- Task lighting
Task lighting
Lighting task areas with the correct amount of light.
- Zoning of lighting
Zoning of lighting
Zoning lighting in accordance to occupancy patterns or window location.
- Maintenance schedule
Maintenance schedule
Tailoring maintenance schedules in accordance to product age, performance and environment.
- Waste light
Waste light
Eliminating waste light which does not hit the intended target.
- Reflectance
Reflectance
Taking advantage of light which is reflected from the surface within the space.
- Visible smart metering
Visible smart metering
Enabling results of actions to be quickly seen as increased or decreased energy use to encourage responsible energy consumption.

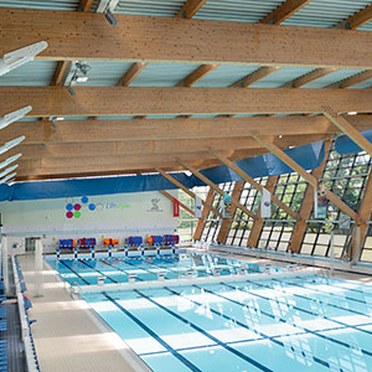

Switching to Thorn Lighting’s Areaflood Pro floodlights has provided the Liverpool Aquatics Centre at Wavertree Sports Park in Liverpool with increased light levels and a reduction in energy consumption. An important criteria for choosing Areaflood Pro for the illumination of the swimming pool area, was that the luminaires have been fully tested and approved as suitable for use in indoor swimming pool environments. This, is in addition to offering a maintenance free product with a body that is also tested and proven to be resistant to chlorine corrosion.
Prior to the new lighting installation, the olympic-sized pool at the Liverpool Aquatics Centre had to be drained following an electrical fault in a floodlight which exploded and showered the pool with shards of glass and also entered the underside of the moveable floor, resulting in major and costly repairs. The Liverpool Aquatic Centre was due to host the ‘Special Olympics Pool Events’ in the summer 2020 so the choice of the correct fitting suited to the pool environment was critical for health and safety purposes.
Following the approval of samples provided by Thorn, a combination of both large and small Areaflood Pro floodlights were chosen for the refurbishment, both of which are compact, lightweight, energy saving and have an IP66 rating. The luminaires have an asymmetrical light distribution of 40 and 60 degrees respectively, with a 4 mm toughened glass enclosure for safety. This combination of fittings has ensured a high quality even light distribution with minimum shadowing, whilst offering energy savings of almost 40 percent compared to the previous fittings.
The use of long life LED’s means there is no need for costly lamp replacements, so all of the disruption and hassle associated with accessing high level light fittings over a pool is removed, as is the cost associated with maintenance. The upgrade has also improved the quality of the light for staff and customers alike, providing a pleasant, well-lit and welcoming environment.
